TORQUE | 60 - 70 kNm |
EXCAVATOR CLASS | from 25 ton |
MAX DEPTH | 25 m |
MAX DIAMETER | 1200 mm |
TOTAL WEIGHT OF THE KIT (without kelly) |
7 t |

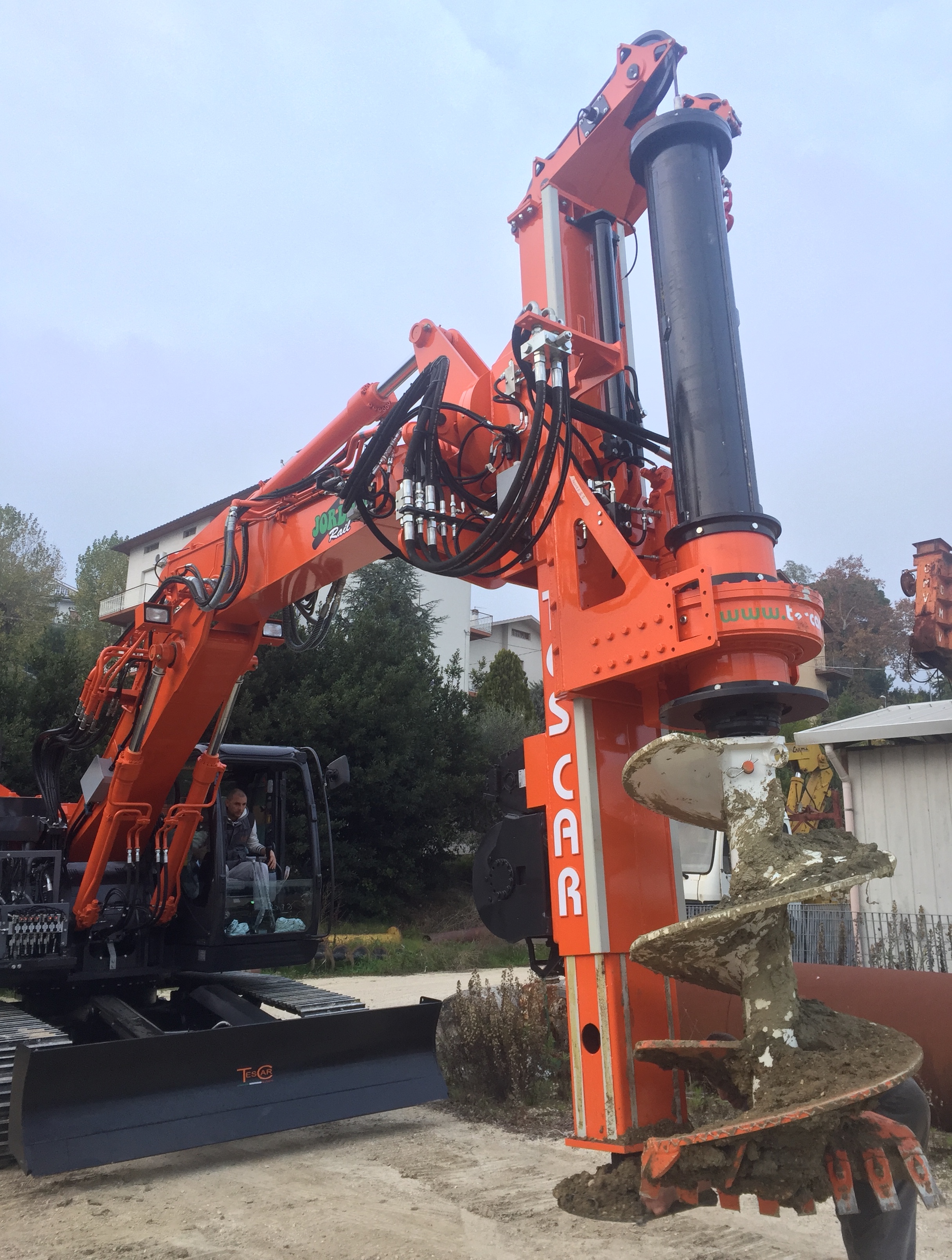

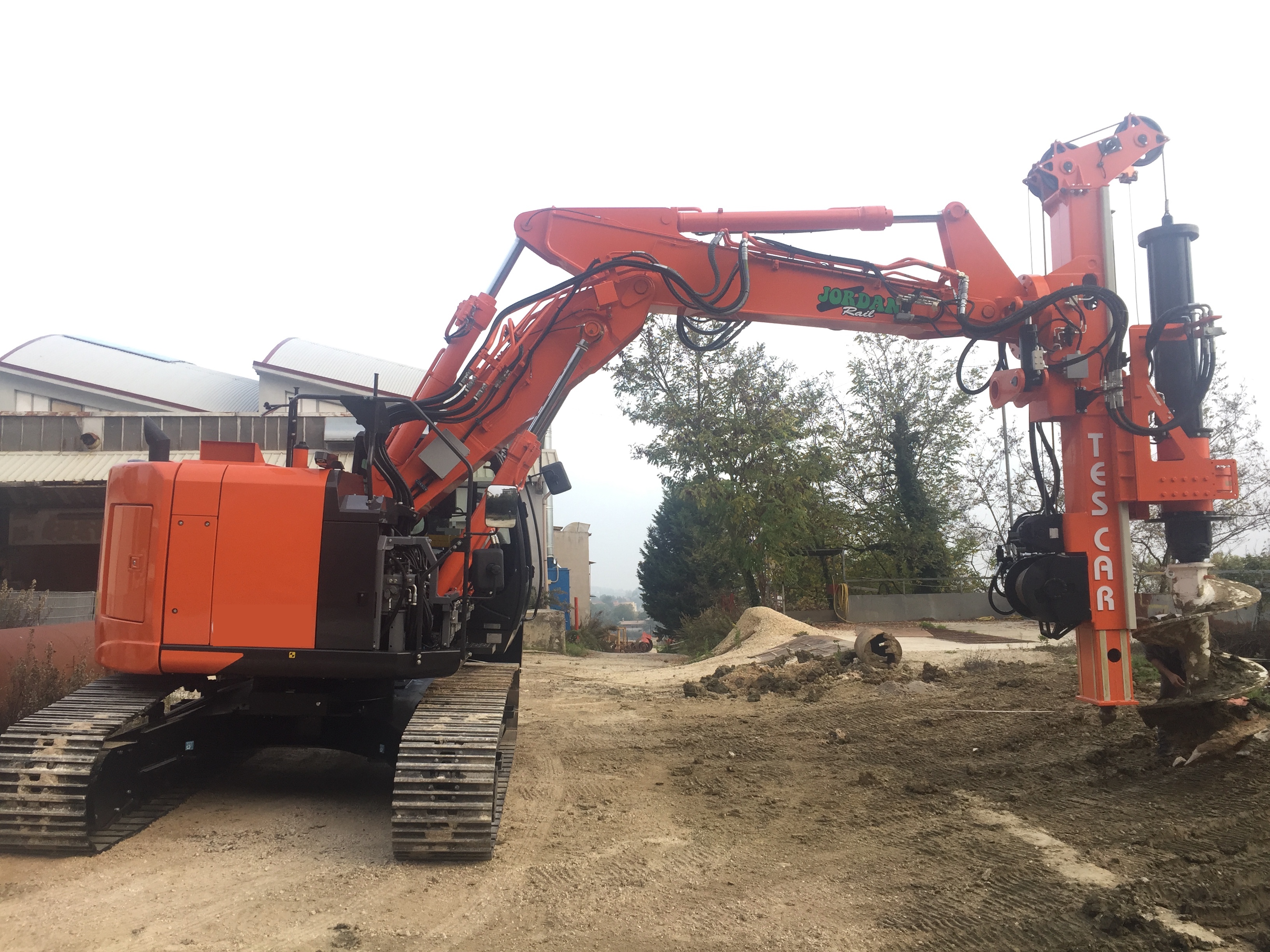

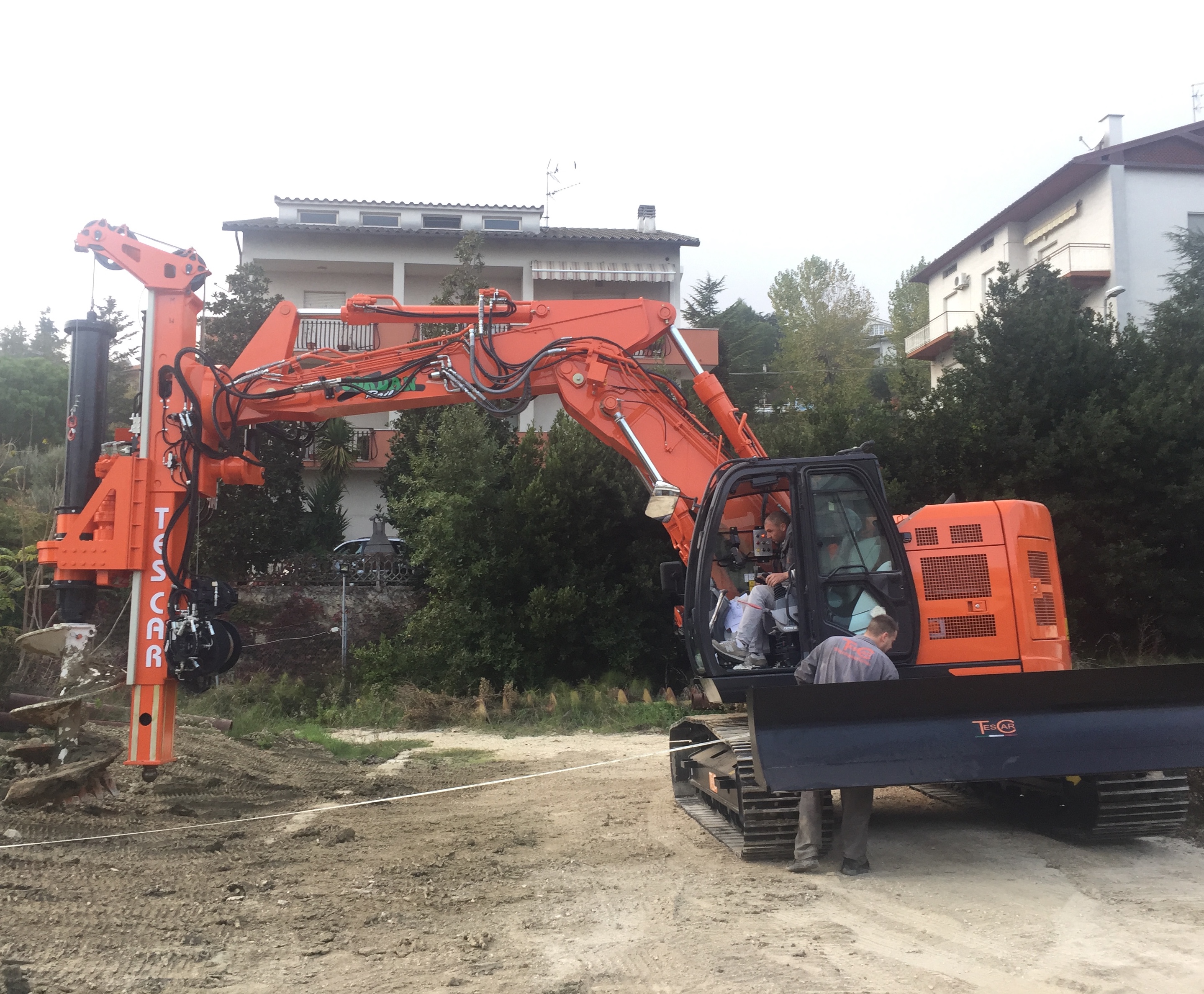

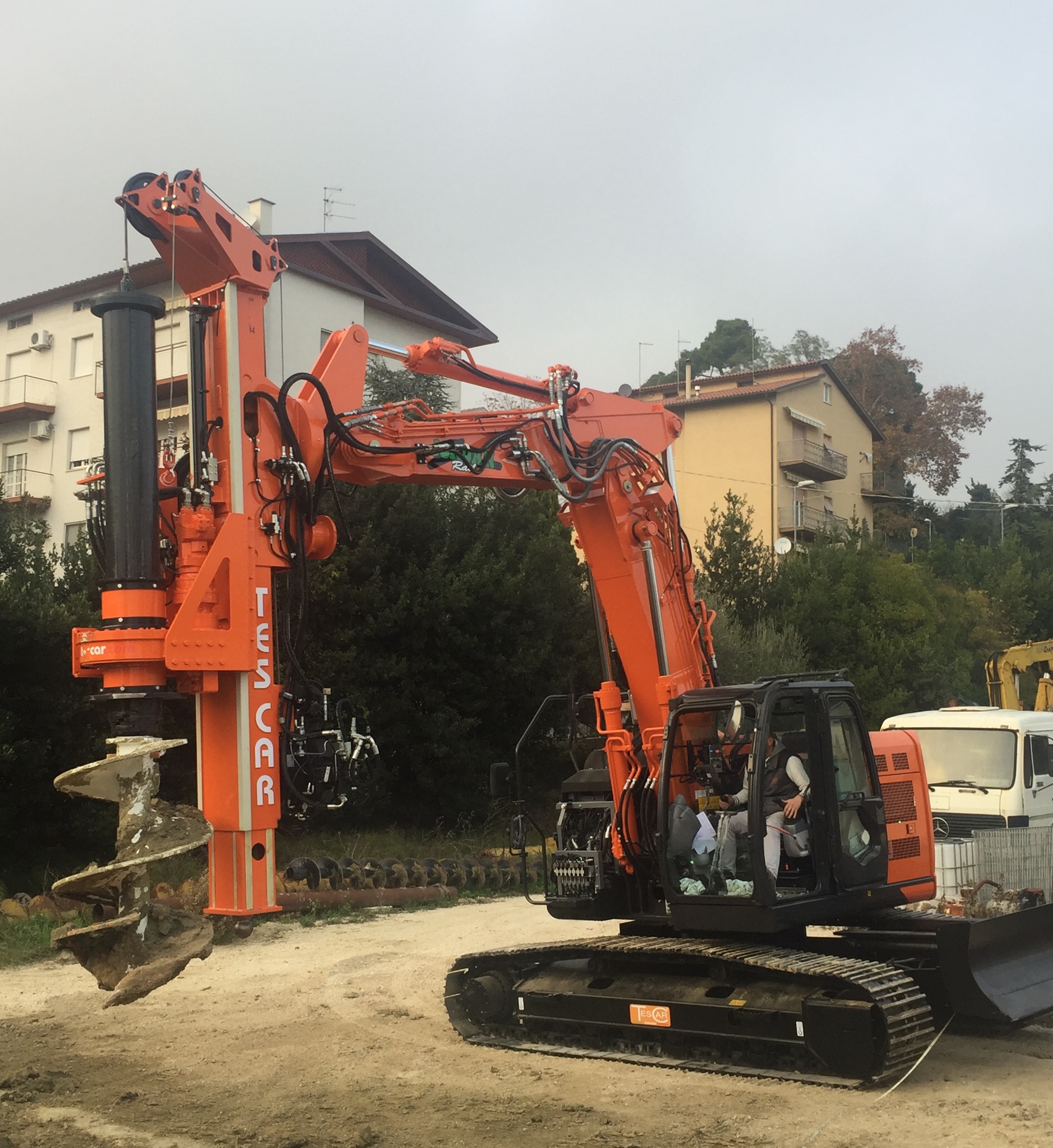

Hydraulic piling kit CF6B
It's a boom mounted drilling kit, so it can get a long reach between the center of the turret and the center of the hole. The CF6B is provided with a special mast divided in 2 sections to permit working in low headroom. The big advantage of our kit is that it can be mounted and removed in a few hours, allowing the customer to switch its machine from excavator to piling rig and back at any time, covering all types of jobsites.
