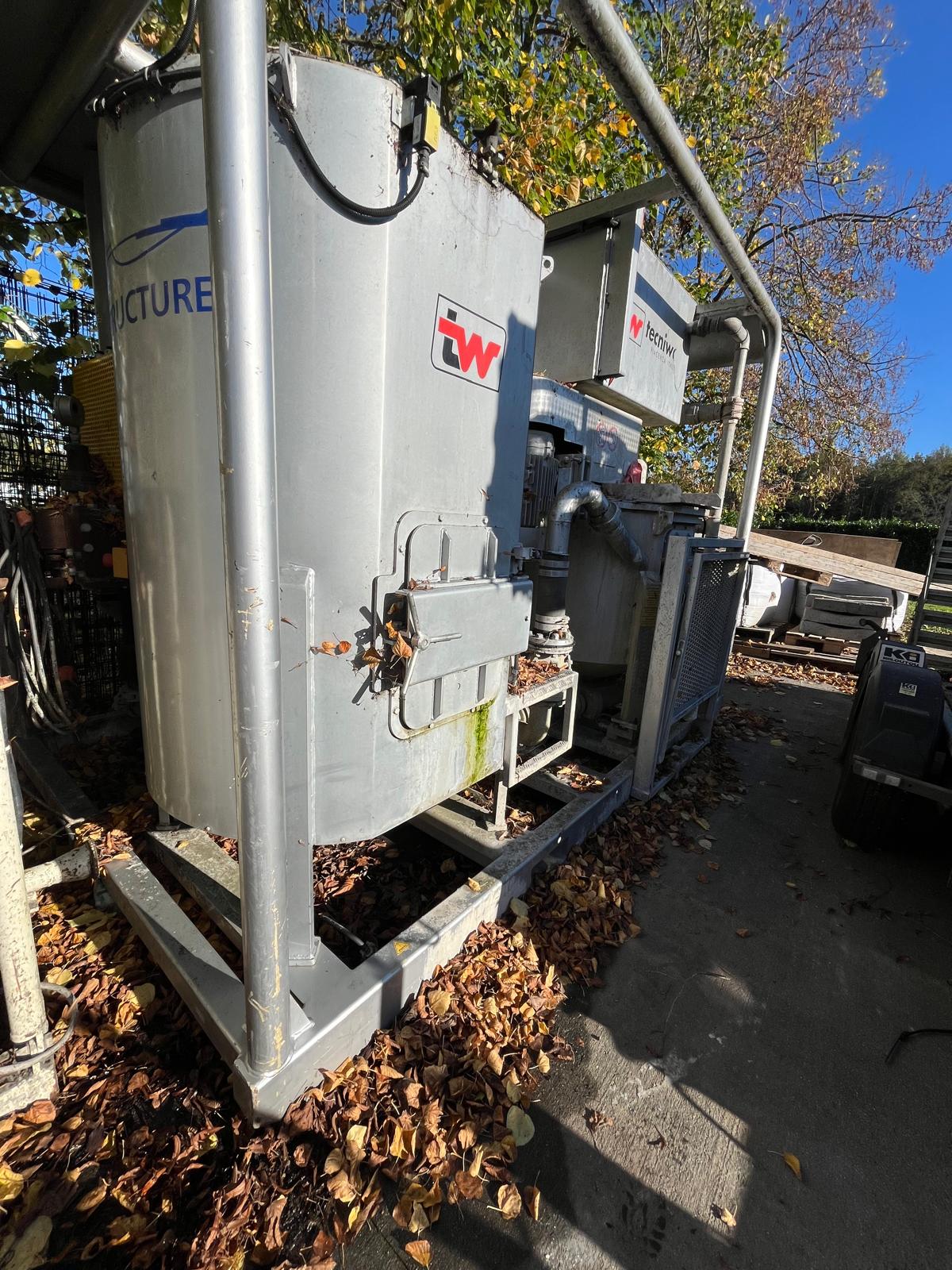

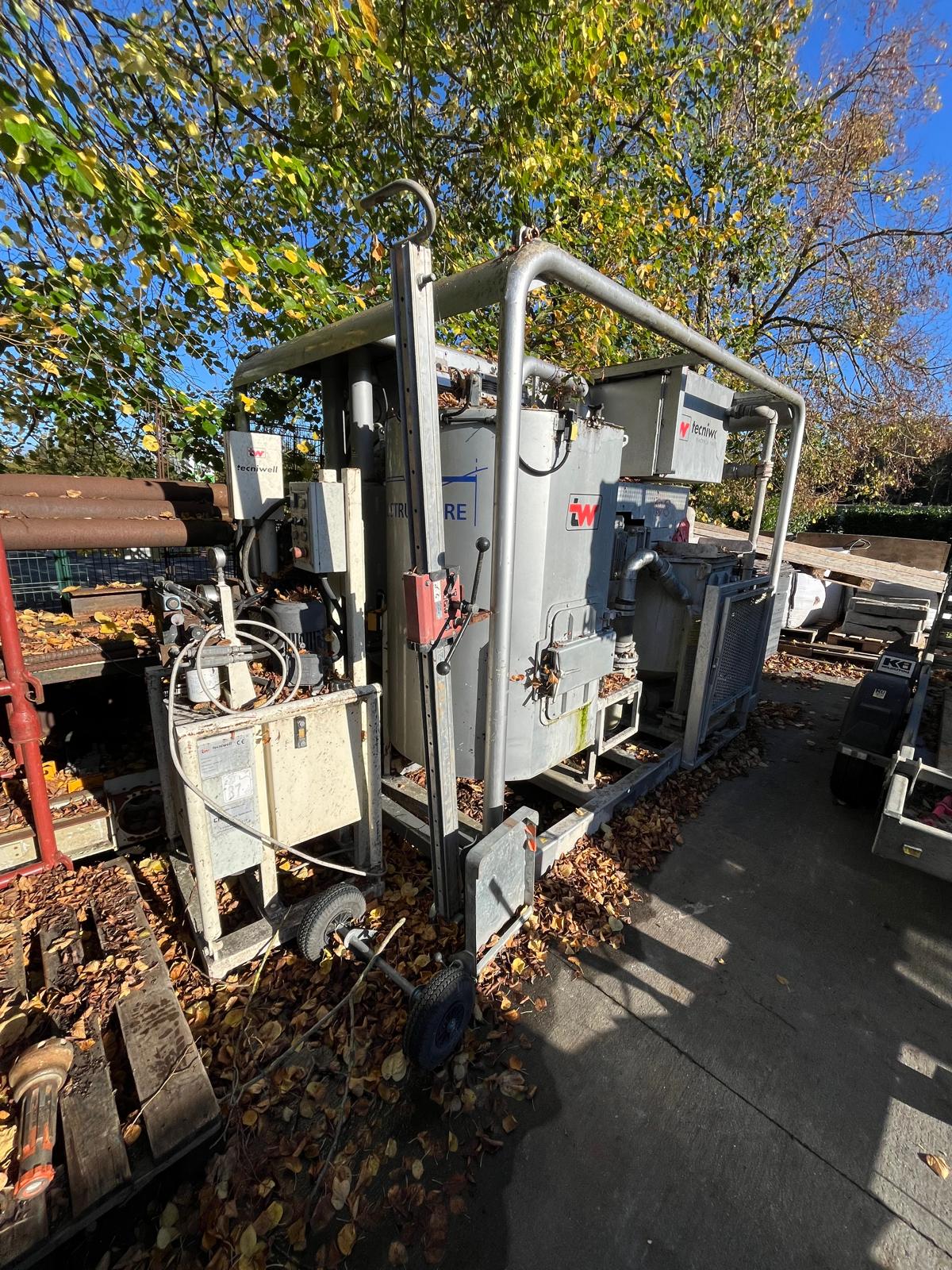

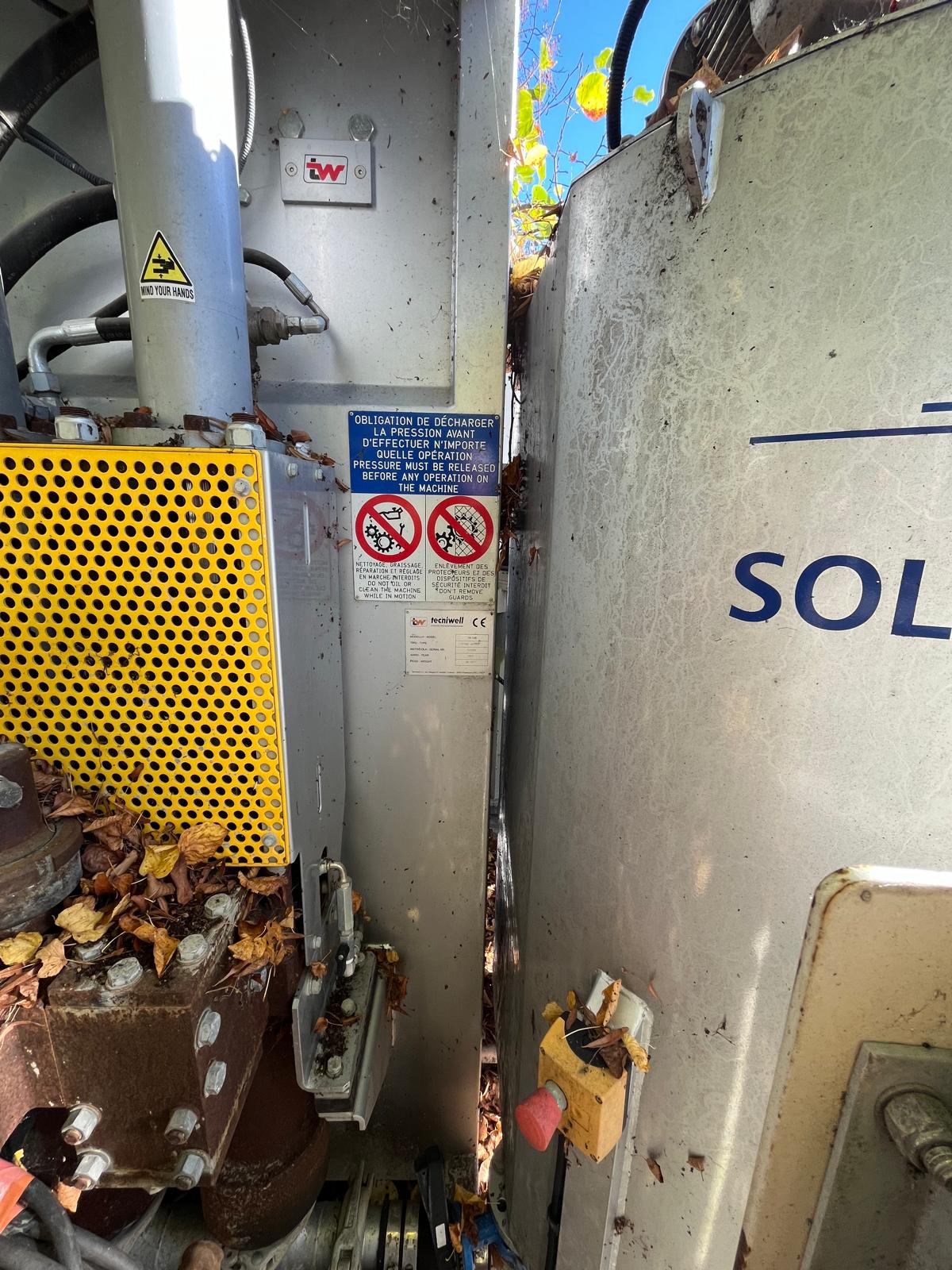

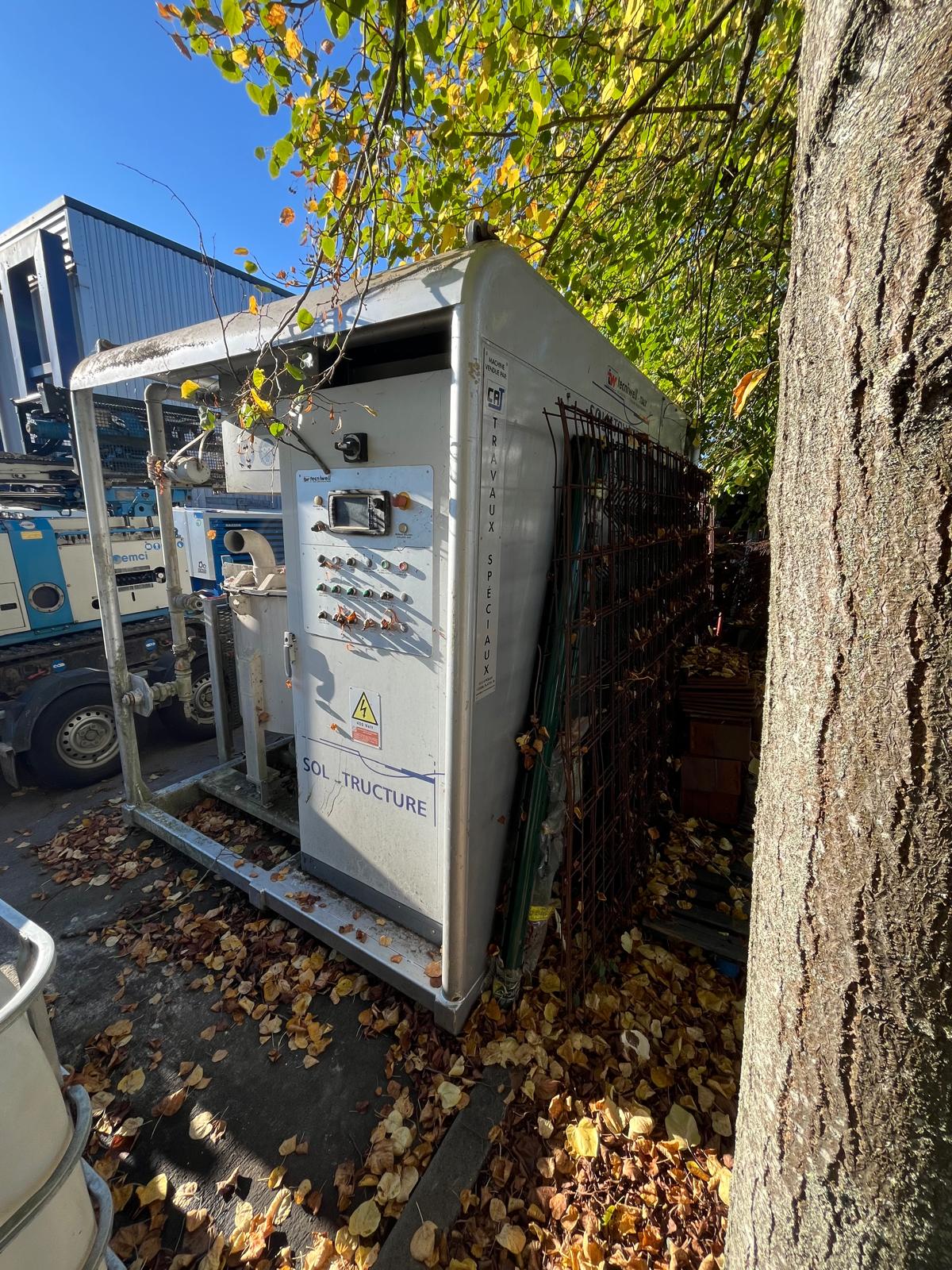

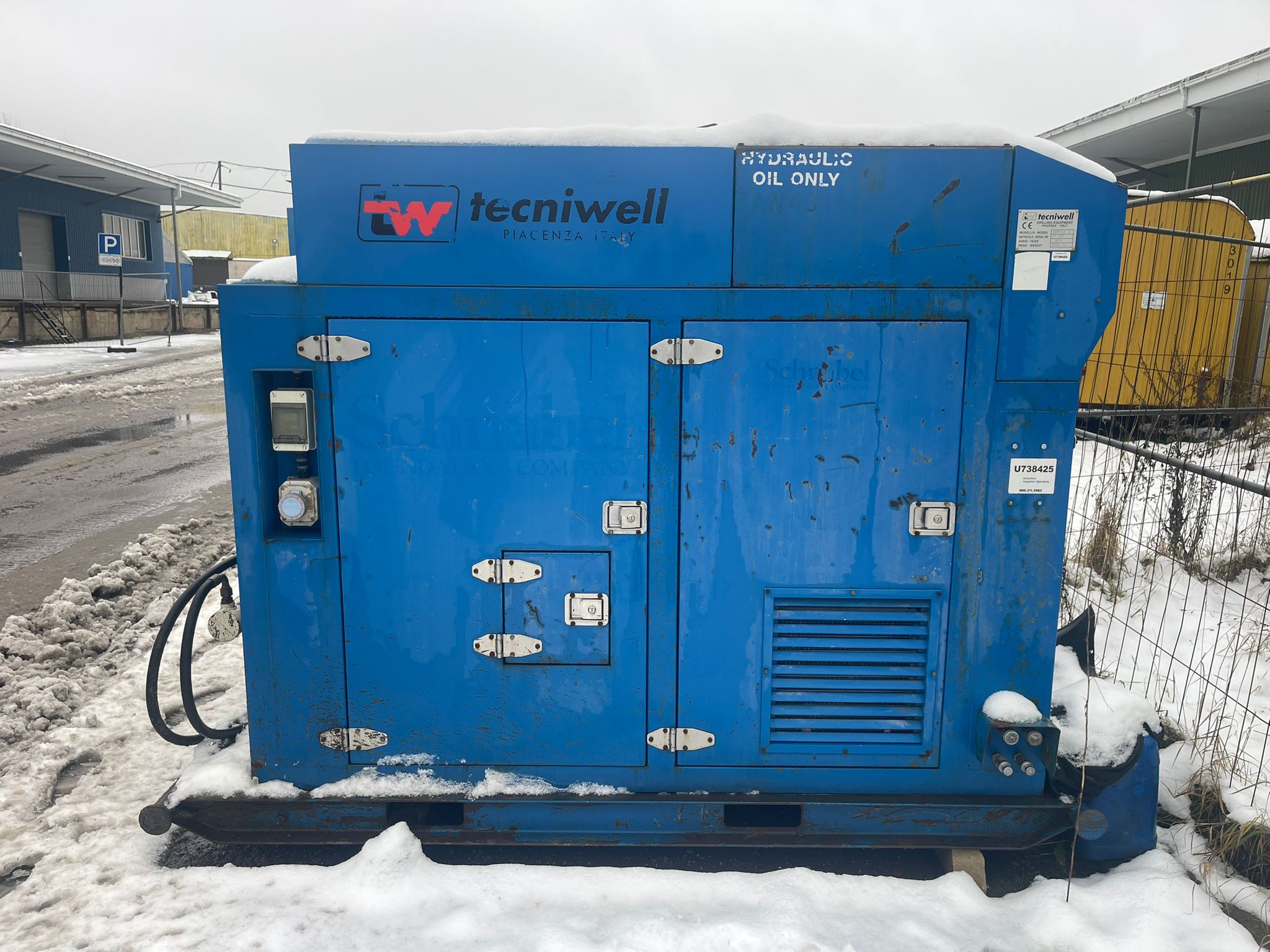

Used TECNIWELL TWMG 57 D Available

Injection/mixing grout unit

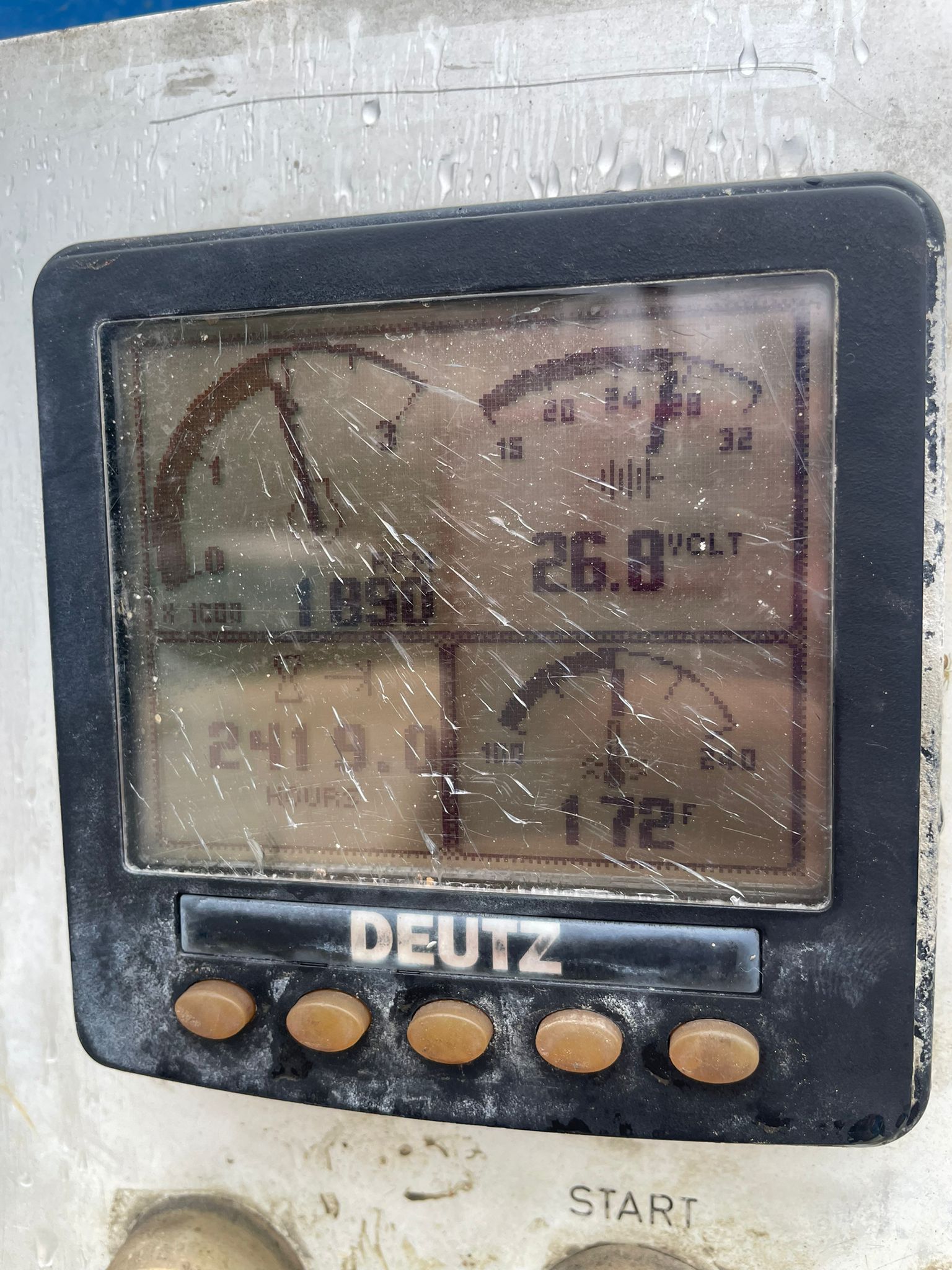

Complete with Deutz TD2.9L4 -  37kW engine

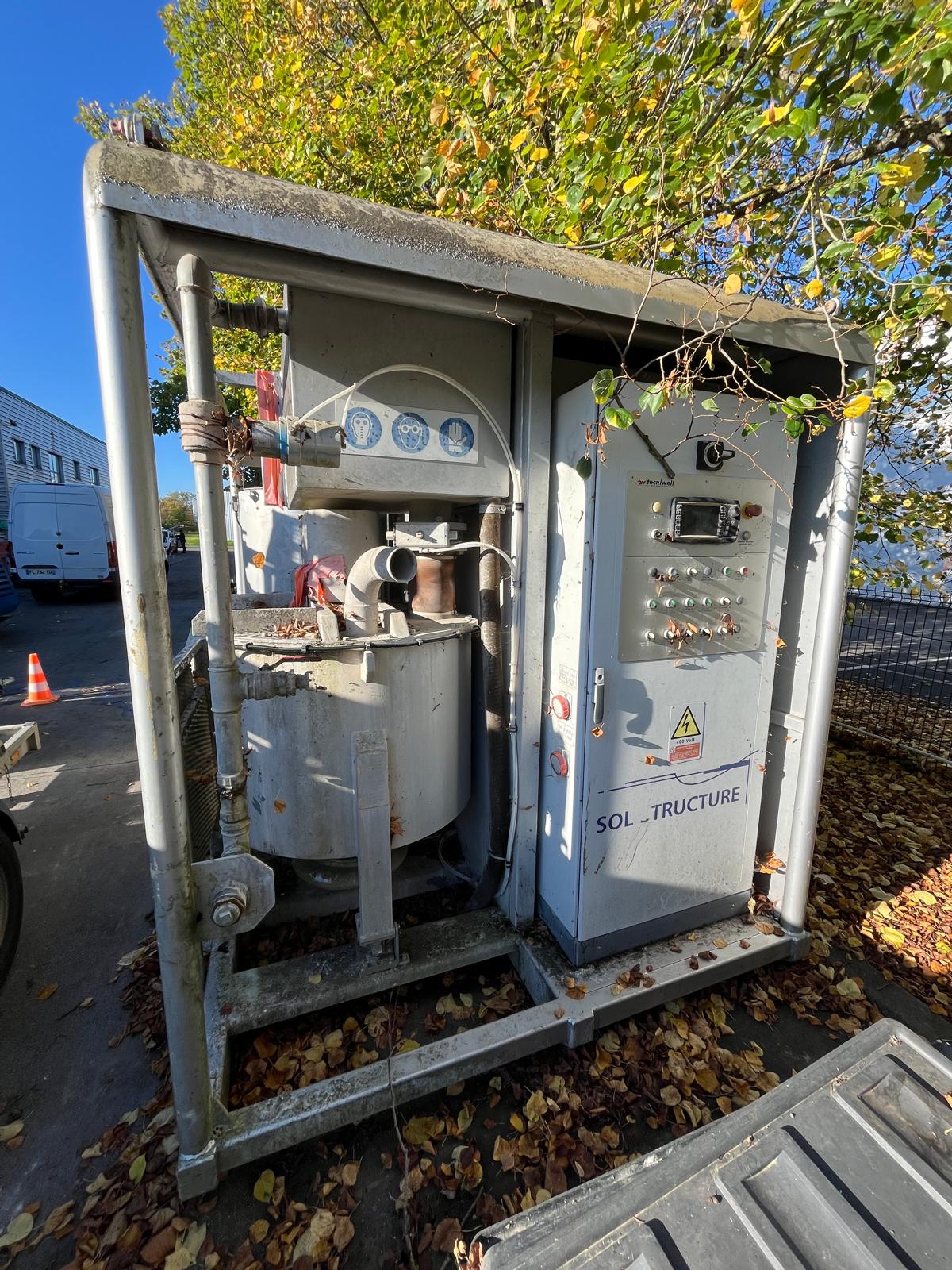

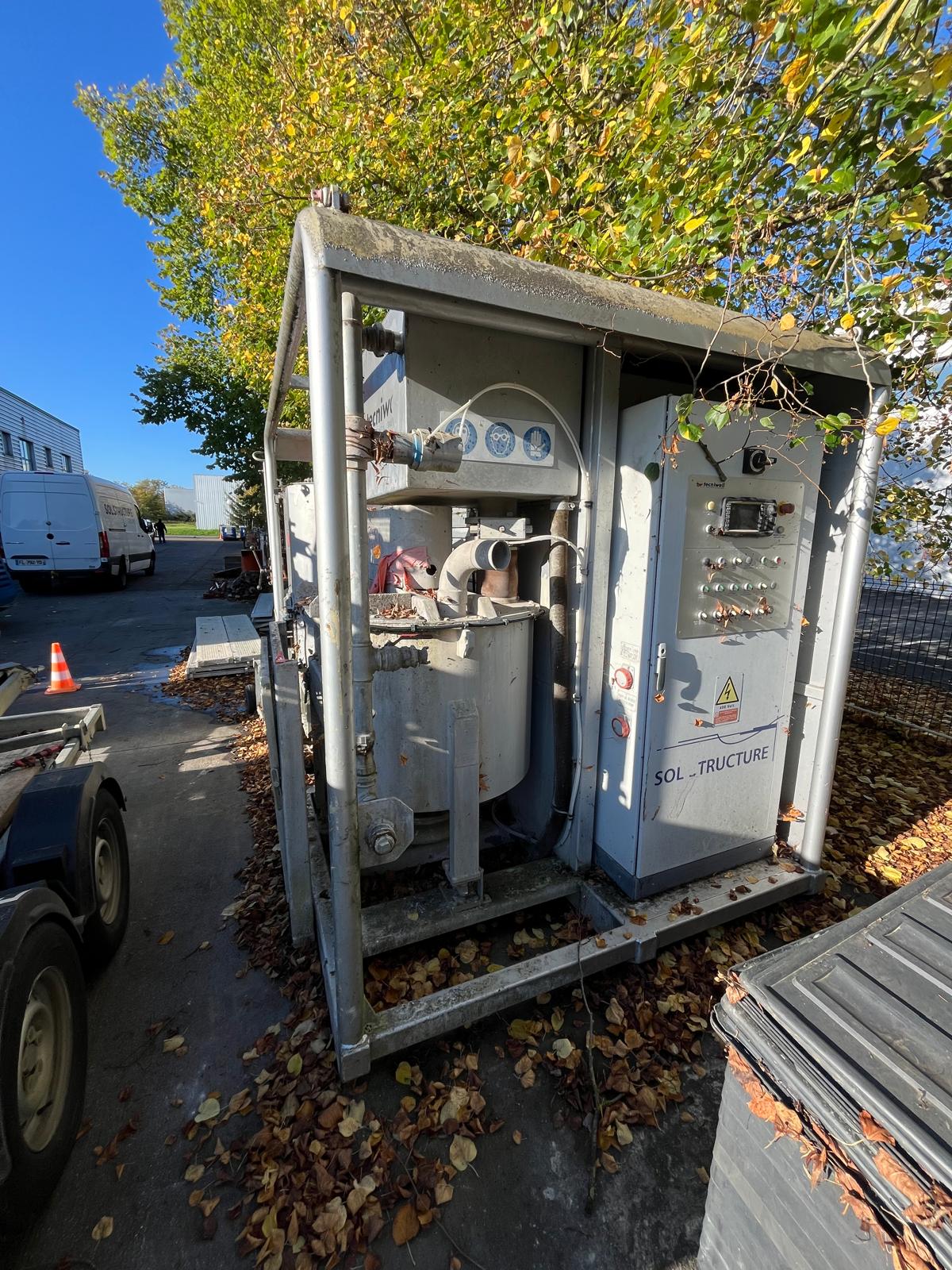

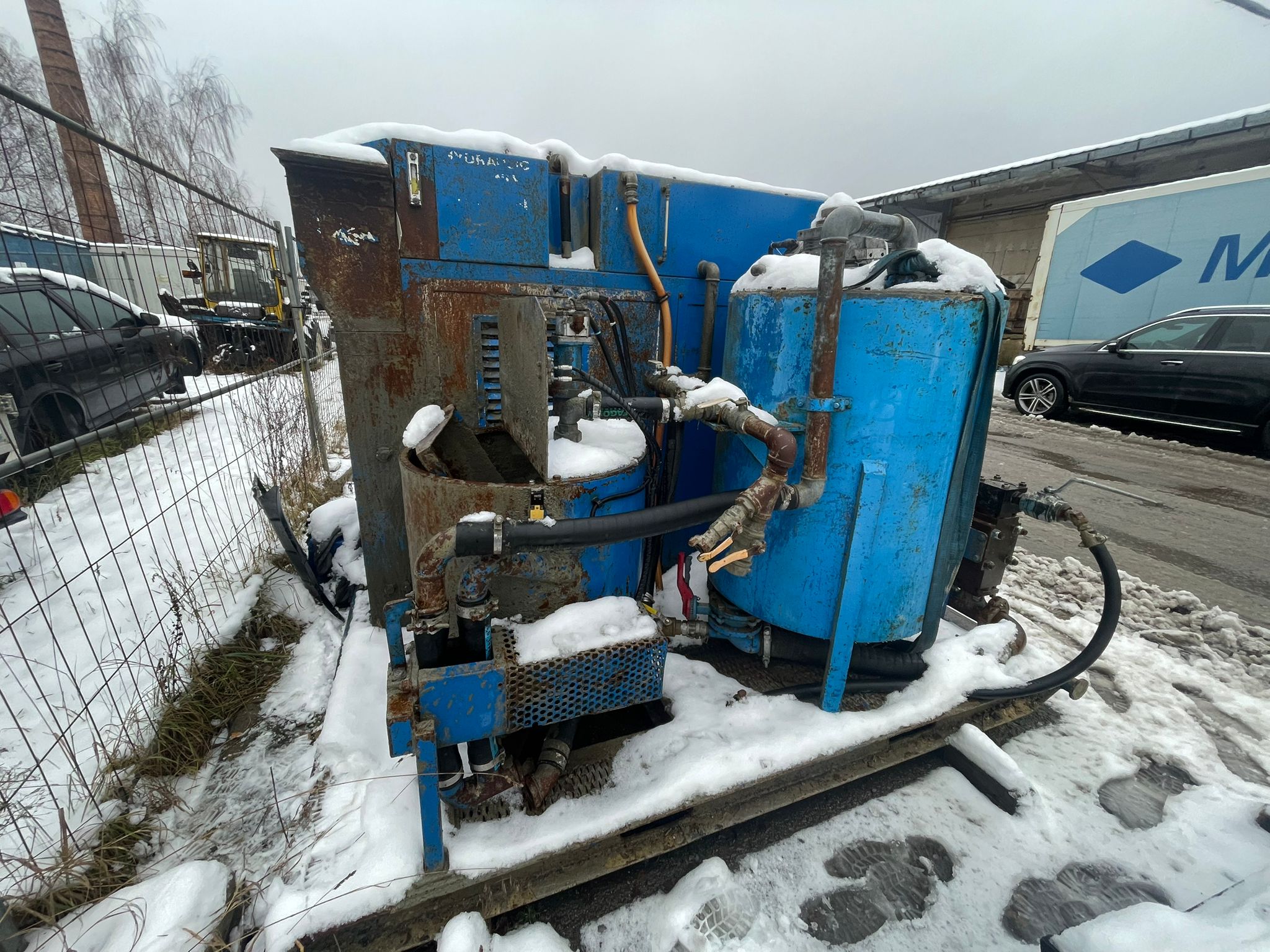

TWM 5 MIXING UNIT / TWM 5 GROUT MIXER
Technical features

Maximum hourly production: 5 m³ (6.5 cu yd)
Operation: manual

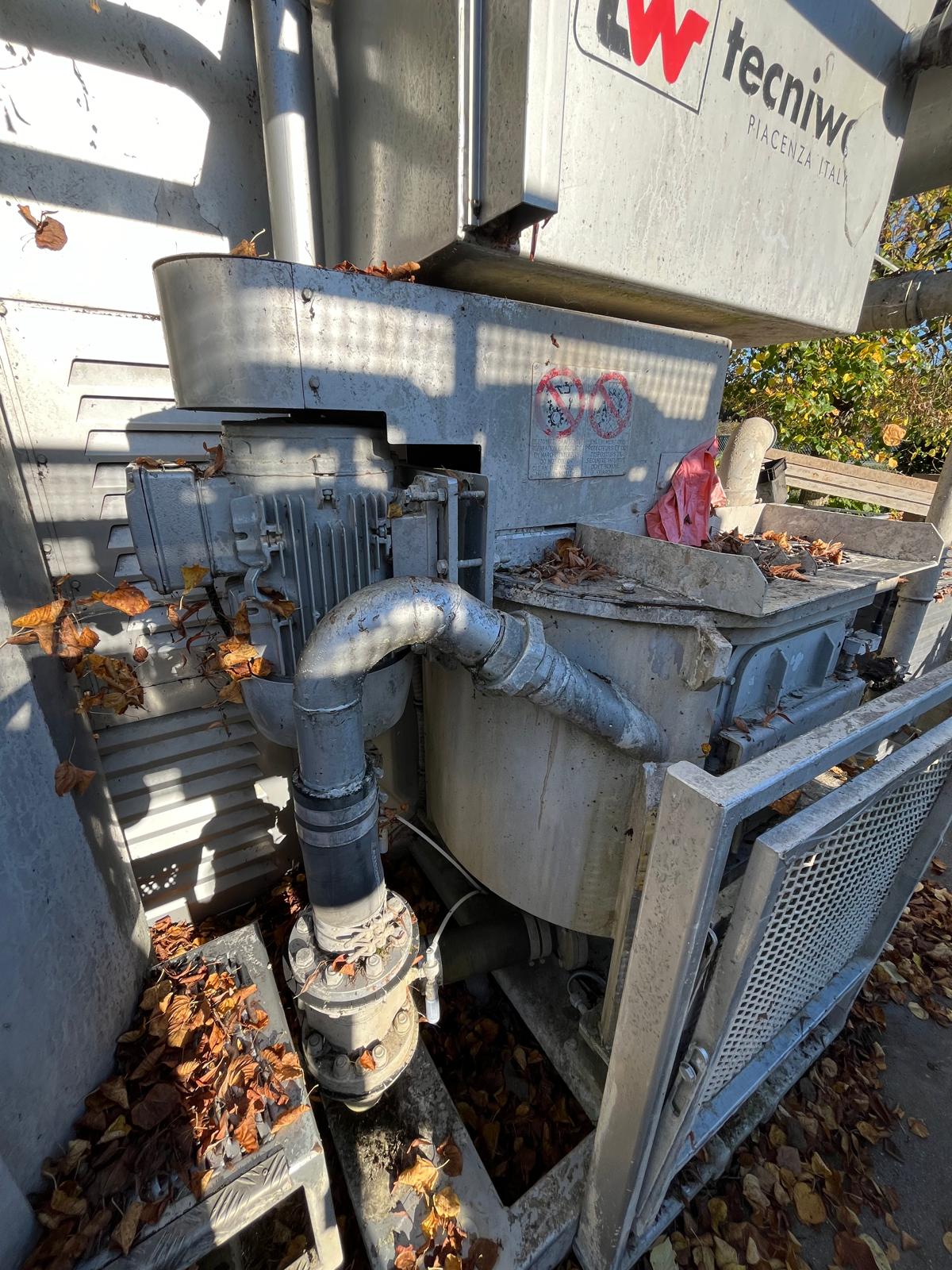

Mixer
Tank capacity: 200 litres (53 gal)
Open impeller pump (maximum flow rate at 1 bar): 700 litres/min (185 gpm)

Agitator
Tank capacity: 500 litres (132 gal)

Water storage tank
Tank capacity: 150 litres (40 gal)

TWG 7 HORIZONTAL INJECTOR / TWG 7 GROUT PUMP
Technical features

Double-acting piston
Piston diameter: 127 mm (5")
Piston stroke: 200 mm (8")
Suction diameter: 76.2 mm (3")
Delivery diameter: 30.6 mm (1¼")
